Products Description
Voril Toilet Paper Roll Packing Machine is used for packing 6, 10, 12 paper rolls and can be connected to automatic cutting machine to realize automatic sealing.
1.Toilet Paper Roll Packing Machine adopt advanced PLC computer programming control, LCD text display parameters, easy to set, water cooling control make temperature control more accurate, effective protection of heating wire and high temperature resistant tape.Servo motor pushes into bag, positioning more accurately
2. Packaging speed: 10-20 bag/min (related to the worker bagging speed)
3. Suitable for toilet paper with core or without core packing and sealing
4. Reasonable structure, stable performance, strong material and durable.The main parts of the control parts are imported high quality components, the rest is the national standard quality components.
Products Parameter
| Type | VL-350X |
| Film width | Max 350mm |
| Bag length | 65-190 or 120-280mm |
| Bag width | 50-160mm |
| Product height | Max 65mm |
| Film roll diameter | Max.320MM |
| Packaging rate | 40-230 bag/min |
| Power | 220V 50/60Hz 2.6KW |
| Machine size | (L)4020 x (W)720 x (H)1320mm |
| Machine weight | about 550kg |
Products Features
1. First sense and work, so that workers can use it more secure.
2. It push toilet roll, napkin or else products into bag, seal the bag, and cut the wasted material.
3. Use PLC control, can set parameter on LCD text display.
4. Need only one worker to operate it.
5. Use strong parts. Stable function.

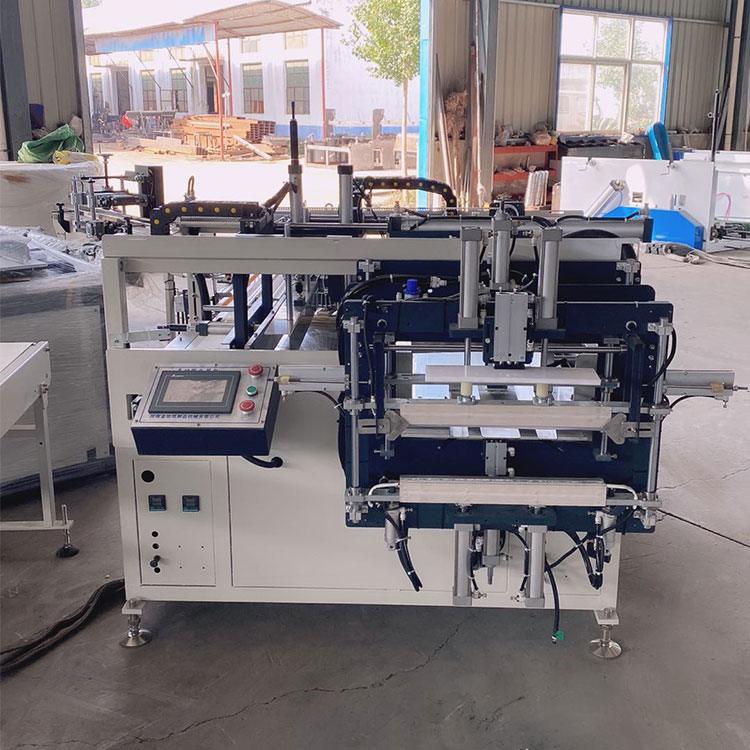

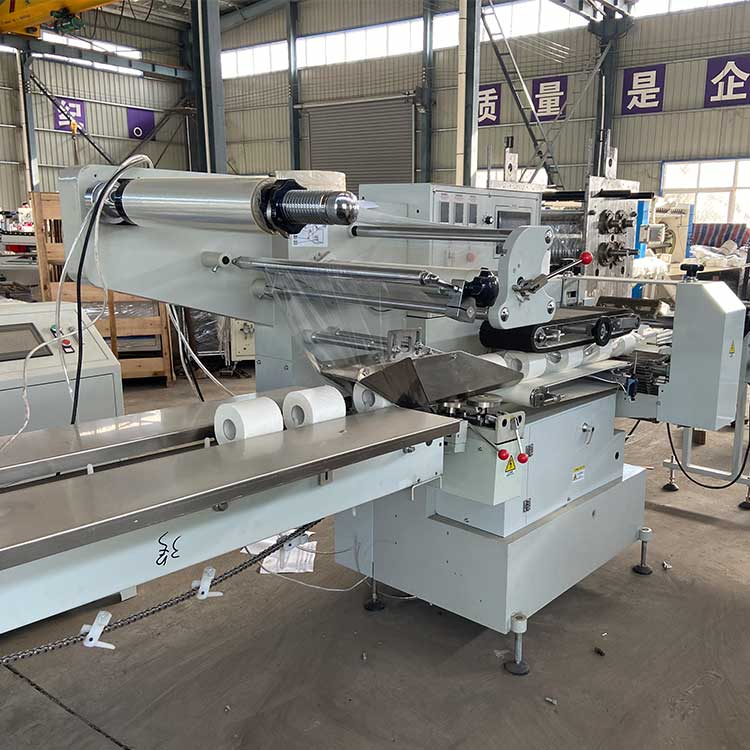

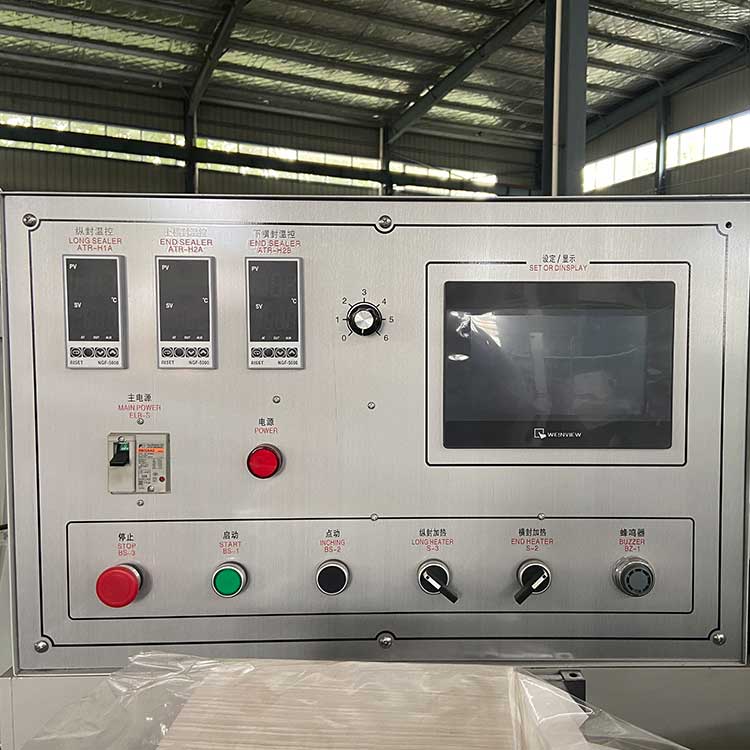

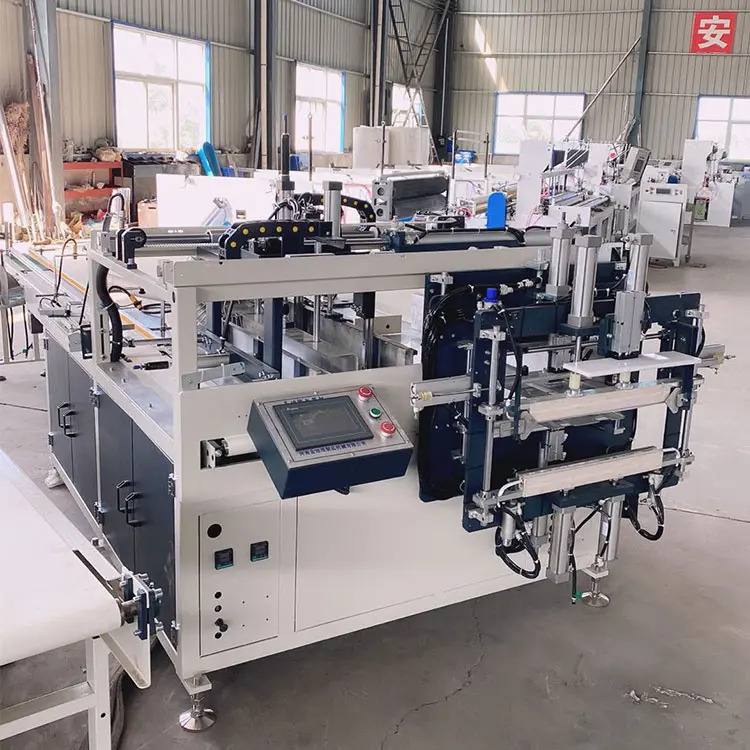

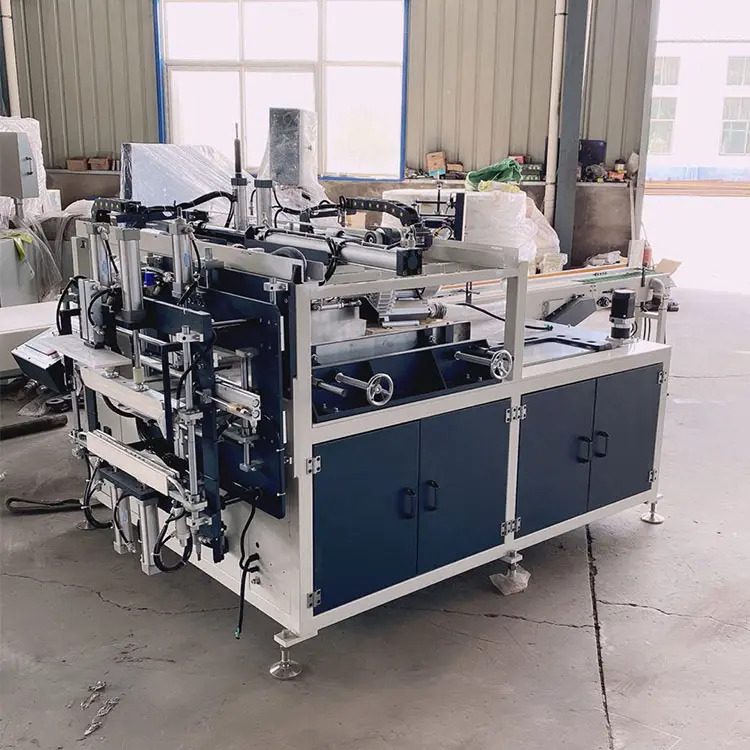

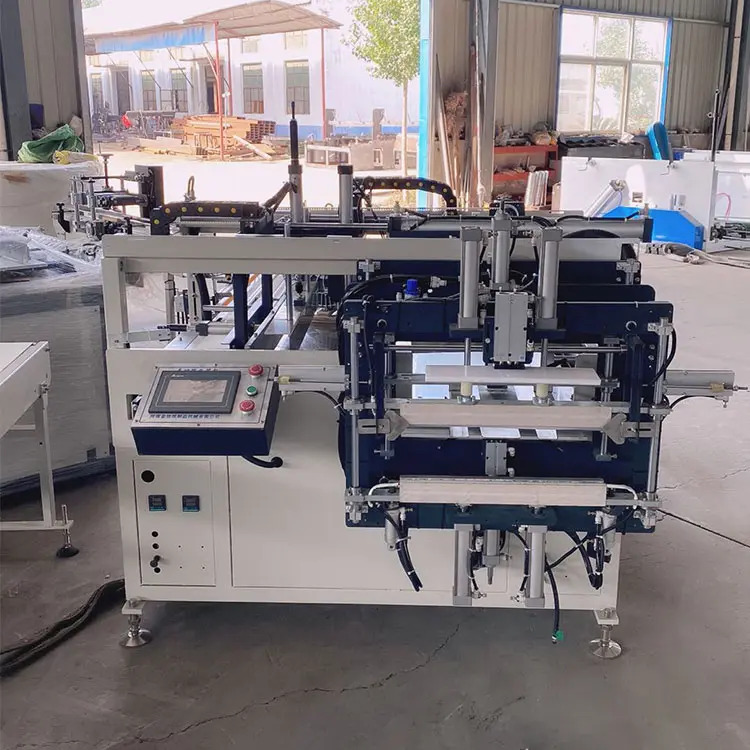

Products pictures
