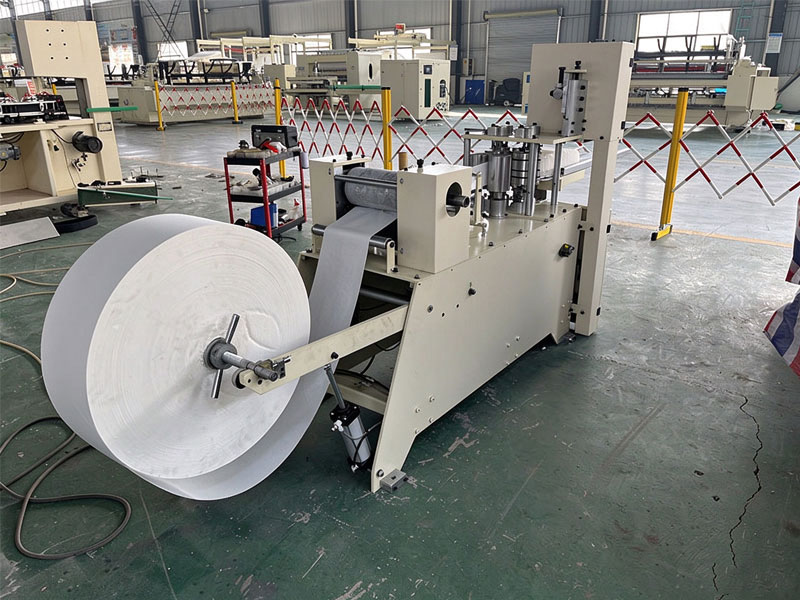

The Serviette Machine is an automatic paper napkin making machine designed to process jumbo rolls of napkin paper into finished folded serviettes. The machine integrates embossing, folding, electronic counting and cutting into one continuous production process, helping simplify the production line and improve operating efficiency.
With a maximum working speed of 150 m/min, this paper napkin machine can be used for commercial serviette production. Different embossing patterns can be selected according to the required product appearance, while color printing can also be configured for customers who need customized printed napkins.
Complete Serviette Production in One Machine
The automatic serviette machine processes jumbo roll paper through several steps in sequence:
Jumbo Roll Feeding → Embossing → Folding → Counting → Cutting → Finished Serviettes
The integrated processing design means that the main converting operations can be completed by one machine without requiring separate embossing, folding, counting and cutting equipment.
This makes the machine suitable for businesses producing paper serviettes for restaurants, hotels, catering companies, retailers, distributors and other commercial applications.
Adjustable Serviette Sizes
The machine supports a wide range of finished napkin sizes.
The available unfolded size is:
190 × 190 mm to 460 × 460 mm
The corresponding folded size is:
95 × 95 mm to 230 × 230 mm
Customized sizes are also available according to the customer's production requirements.
Before ordering a serviette machine, buyers should confirm the required finished napkin size, folding format and paper specifications so that the machine configuration can be matched to the intended production.
Embossing and Printing Options
The machine uses an embossing system to create different patterns on the napkin paper. Different embossing patterns can be selected according to the desired appearance of the finished serviette.
For businesses producing customized paper napkins, color printing is also available. Printed serviettes can be used for brand promotion, restaurants, hotels, events, catering businesses and other commercial applications.
The combination of embossing and printing allows manufacturers to produce paper napkins with different visual designs rather than standard plain products.
Electronic Counting System
The machine is equipped with an electronic counting system for finished serviettes.
Accurate counting is important for commercial napkin production because finished products are normally packed and sold according to a specified quantity. Electronic counting helps operators organize the output before the subsequent packaging process.
For example, if a customer sells napkins in fixed-count packages, the counting system can be incorporated into the production process to support consistent product quantities.
High-Speed Production
The serviette machine has a maximum speed of approximately 150 m/min.
The actual production output will depend on factors such as:
Finished napkin size
Folding format
Paper material
Embossing requirements
Printing configuration
Operating conditions
Production settings
For this reason, buyers should provide their target napkin size, paper specification and required production capacity when requesting a quotation.
Raw Paper Requirements
The machine is designed to process napkin paper from jumbo rolls.
The maximum raw paper roll diameter is:
≤ 1200 mm
The standard raw paper core inner diameter is:
75 mm
Other core sizes can also be available according to production requirements.
Before purchasing a serviette machine, it is important to check whether the customer's existing jumbo rolls are compatible with the machine's paper feeding system.
Machine Specifications
| Parameter | Specification |
|---|---|
| Machine Model | VLN Series |
| Unfolding Size | 190 × 190–460 × 460 mm |
| Folded Size | 95 × 95–230 × 230 mm |
| Raw Paper Roll Diameter | ≤1200 mm |
| Standard Raw Paper Core Inner Diameter | 75 mm |
| Embossing Roller | Cots, wool roll |
| Counting System | Electronic counting |
| Power | 4.2 kW |
| Speed | 150 m/min |
| Transmission | 6 chains |
| Speed Control | Frequency control, electromagnetic governor |
| Dimensions | 3200 × 1000 × 1800 mm |
| Weight | 890 kg |
Why Choose an Automatic Serviette Machine?
For paper napkin producers, an automatic serviette machine combines several converting processes into a single production system. This can simplify equipment configuration and reduce the need for multiple independent machines.
Key features include:
Automatic production process
Embossing and folding integrated
Electronic counting system
Automatic cutting
Up to 150 m/min machine speed
Multiple finished napkin sizes
Customized sizes available
Different embossing patterns
Color printing option
Frequency control
Compact machine structure
Applications of the Serviette Machine
The machine can be used for producing paper serviettes for different commercial markets, including:
Restaurants
Hotels
Cafés
Catering companies
Food service businesses
Retailers
Paper product distributors
Disposable paper product manufacturers
For companies that already have a market for paper napkins or serviettes, the machine can be configured according to their required product size, appearance and production requirements.
How to Select the Right Serviette Machine
Before ordering a serviette machine, buyers should prepare several basic production requirements.
First, confirm the finished napkin size, such as 200 × 200 mm, 300 × 300 mm or another required specification.
Second, confirm the folded size and folding format required for the finished product.
Third, provide information about the raw paper jumbo roll, including roll diameter and core inner diameter.
Fourth, determine whether embossing or color printing is required.
Finally, confirm the expected production capacity and electrical requirements.
Providing these details allows the supplier to recommend a suitable machine configuration and prepare a more accurate quotation.
Request a Serviette Machine Quote
If you are looking for a serviette machine for commercial paper napkin production, provide the following information when requesting a quotation:
Required unfolded napkin size
Required folded size
Napkin folding format
Raw paper GSM
Jumbo roll width
Maximum jumbo roll diameter
Core inner diameter
Required embossing pattern
Color printing requirement
Target production capacity
Destination country
Based on these requirements, the machine configuration can be matched to your production needs and a quotation can be prepared accordingly.
This automatic serviette machine is designed to convert jumbo roll paper into finished folded paper napkins through embossing, folding, electronic counting and cutting in one integrated production process.
