Products Description
Automatic spiral winding paper tube / core product making machinery / machine adopts Programmed Control System and meter counter,all the working parameters can be setup on the control panel. Delta PLC control system, a mainframe operating.
It adopts imported frequency inverter to control the AC motor, the machine working is more stable.
Text Display operation, all of the features automatic memory, automatic preservation, automatic fault display.
It adopts double side glue coating devices, the paper core is more sticky and stronger. The use of double-sided adhesive plastic through independent stainless steel scraper polyurethane imports, production of a paper on the strength of stronger glue on one side of the traditional paper machine.
It adopts photocell for the paper core length tracking, after get to the setup length, the paper core shall be cut off.
Products Parameter
Machine Type | VL-2150A | VL-2150B | VL-4150A | VL-4150B |
Tube Layer | 3-10 ply | 3-16 ply | 3-21 ply | 3-24 ply |
Tube Diameter | 20-100mm | 20-150mm | 40-200mm | 40-250mm |
Tube Thickness | 1-6mm | 1-8mm | 1-20mm | 1-20mm |
Working Speed | 3-15m/min | 3-20m/min | 3-15m/min | 3-20m/min |
Power | 4KW | 5.5KW | 11KW | 11KW |
Host Size | 2.9*1.8*1.7m | 2.9*1.9*1.7m | 4.0*2.0*1.95m | 4.0*2.0*1.95m |
Total Weight | 1800kg | 1800kg | 3200kg | 3500kg |
Belt Diagonal | Manual | Electric | Electric | Electric |
Winding Head | Two winding heads single belt | Four winding heads double belt | ||
Voltage | 380V, 50Hz or 220V, 50Hz | |||
Products Features
1. The mainframe adopts heavy steel plate welded after CNC cutting, the machine is stable and not easy to deform
2.The main machine adopts hard tooth surface full oil bath chain transmission, low noise.
3.The mainframe adopts vector type High torque inverter speed regulation
4.PLC control system is used to improve cutting response speed, cutting length control is more accurate than ever.
5.With multi-function bottom paper supply device, paper breaking automatic paper stop function.

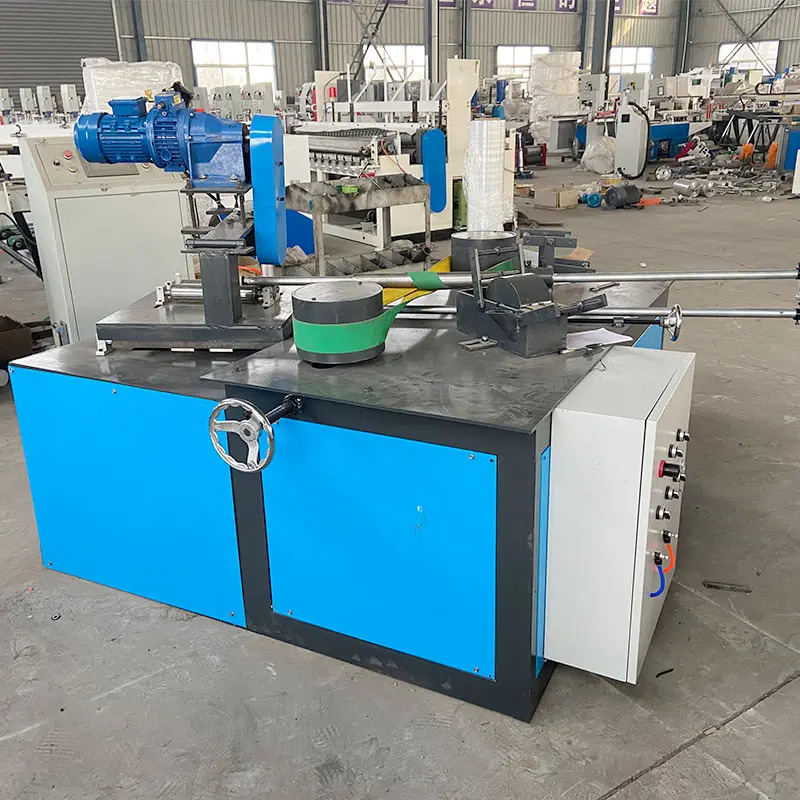

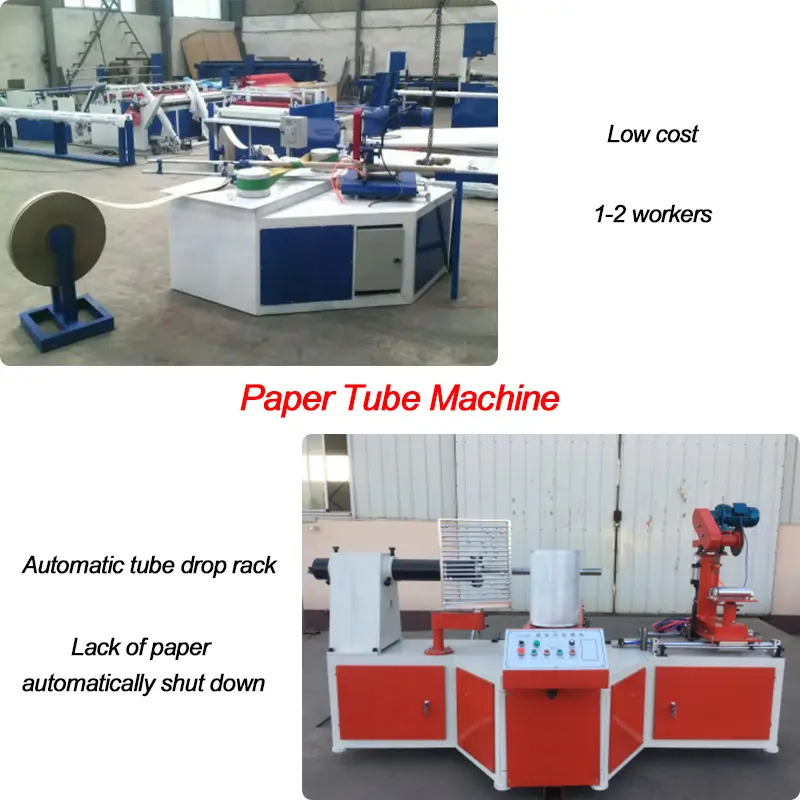

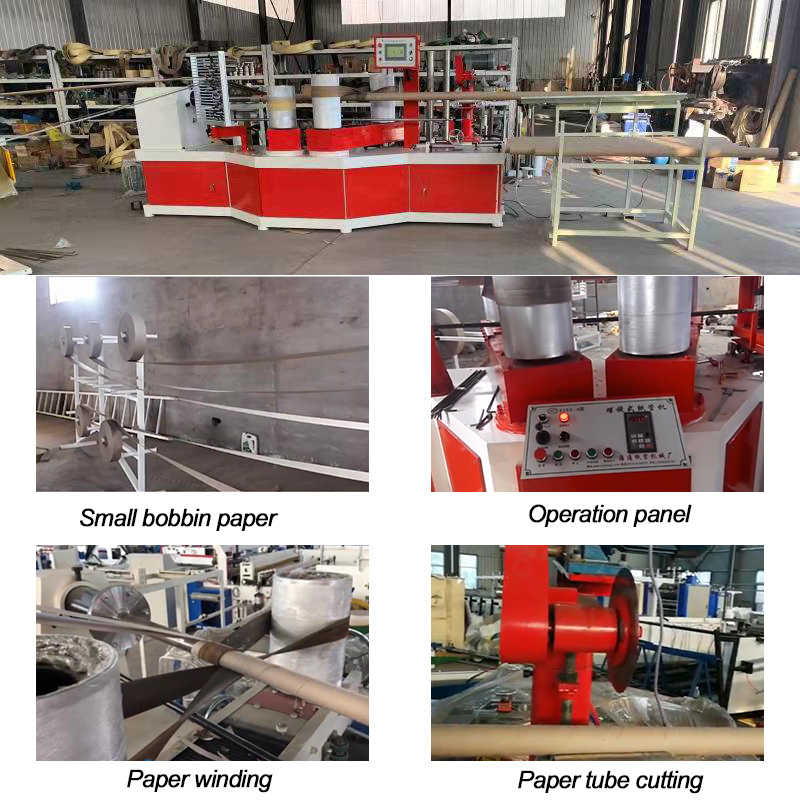

Products pictures
