Products Description
The toilet roll making machine has core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Products Parameter
Machine Model | VLT-1092 | VLT-1575 | VLT-1760 | VLT-1880 | VLT-2800 | VLT-3500 |
Paper Width(mm) | 1300 | 1800 | 2000 | 2200 | 2800 | 3500 |
Capacity (ton/day) | 1 8 hours | 1.5 8 hours | 2 8 hours | 2.5 8 hours | 3 8 hours | 3.5 8 hours |
Finished Diameter | φ50~1800mm (Adjustable width and tightness) | |||||
Finish Paper Core | φ30~55mm | |||||
Base Diameter | With 1100mm | |||||
Jumbo Roll Core Diameter | 76mm | |||||
Process Capability | 150~280 M / Min | |||||
Parameter Setting | PLC computer operating system interface | |||||
Back Stand | Standard three layer synchronous transmission | |||||
Perforation Pitch(mm) | 2baldes,150~300mm | |||||
Pneumatic System | The 3 horse air compressor,a minimum pressure of 5kg/cm2Pa (not included in the quotation, usually customer buy it themselves) | |||||
Power | 5.5kw~15kw (Stepless variable speed) | |||||
Dimensions | 6200*2600*800mm~6200*4000*800mm | |||||
Weight | 2500kg~8800kg | |||||
Products Features
1) This machine is used to make toilet paper rolls. The overall structure is wall-mounted, which makes the machine run at high speed and has no noise.
2) Automatic core delivery system, automatically push the log after rewinding, and then re-wind the new log.
3) Adopt international advanced PLC programmable control technology, man-machine interface operation on the touch screen, data set and parameter fault display.
4) 4 high-precision spiral knives with low noise, clear perforation and a wider range of gearboxes.
5) Double wall rear bracket, pneumatic lifting system, broadband drive flat belt; each large volume can be adjusted independently.
6) Simple and safe operation.

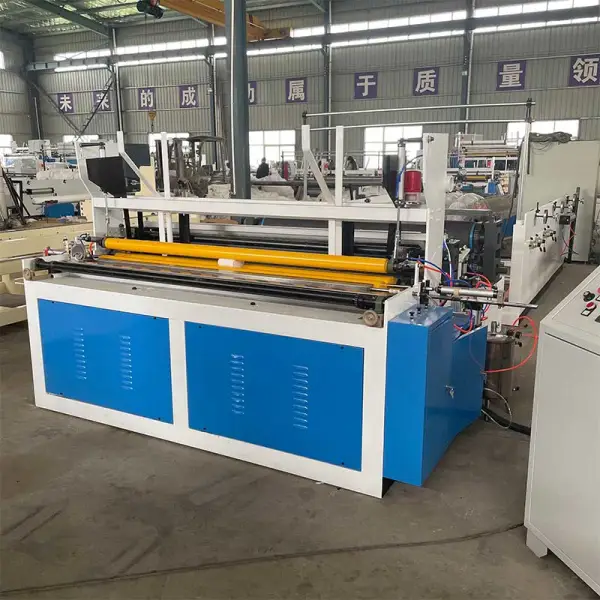

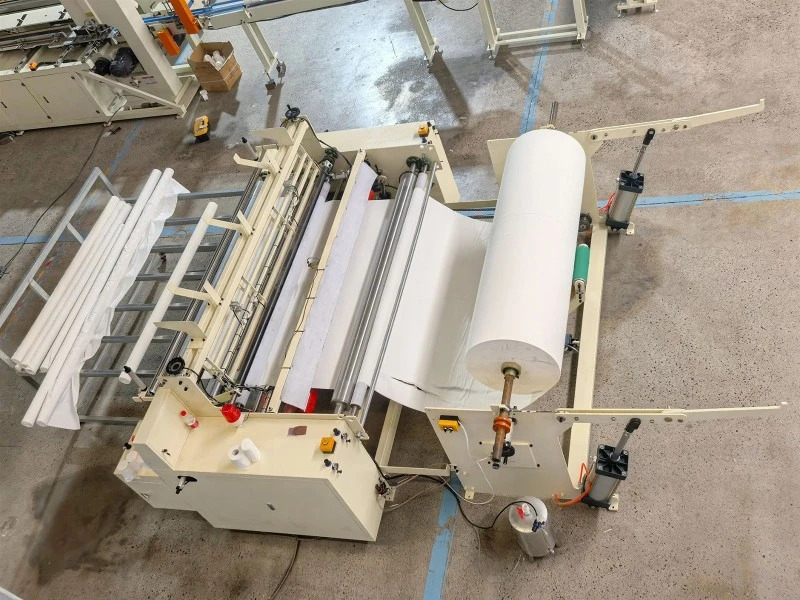

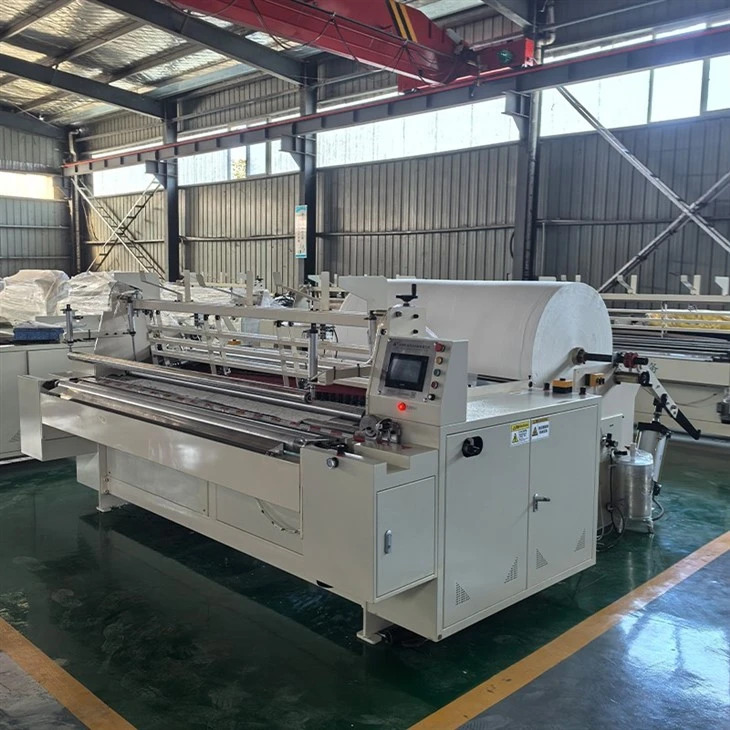

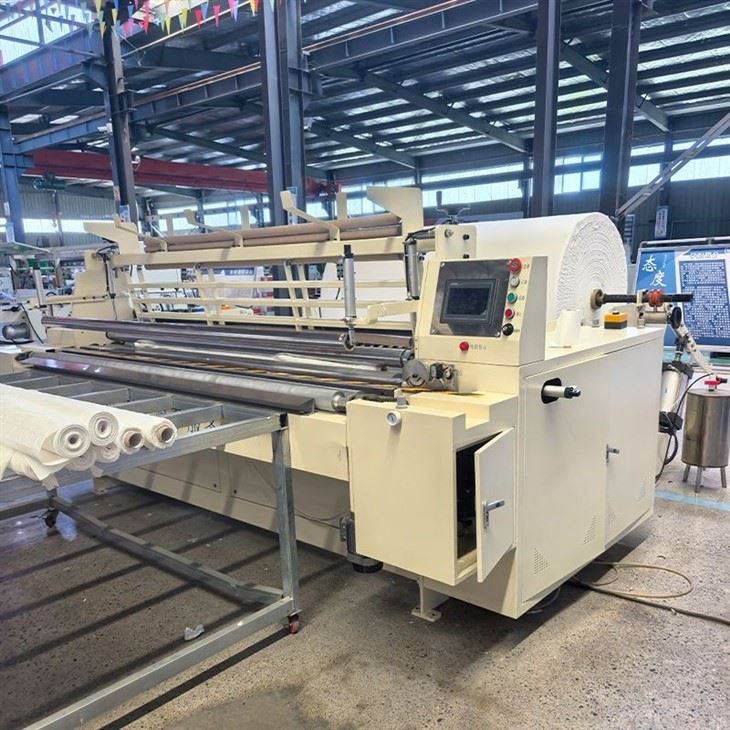

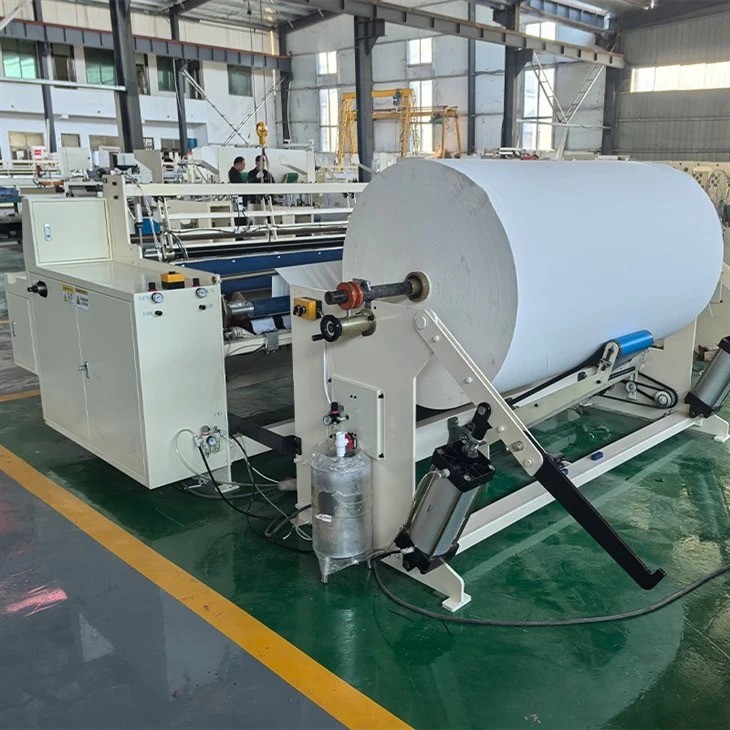

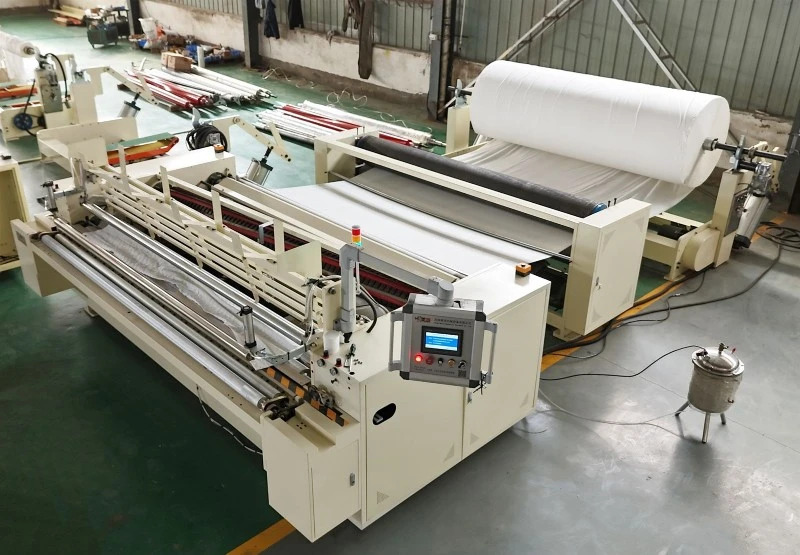

Products pictures
