Products Description
This equipment is adjustable to meet the requested finished product of toilet paper and kitchen towel. This model is the ideal equipment for paper making factory and paper converting factory.
This equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area. The highest production speed is 200-250M/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.
We have 1800mm,2000mm,2200mm,2800mm,3000mm and so on , we have different machines to meet different budget, not only for big companies but also for small business
Products Parameter
Model | 1575 Fully Automatic kitchen paper towel making machine |
Jumbo Roll Max Width | 1800mm (Other size can be specified) |
Jumbo Roll Diameter | Φ1500mm(Other size can be specified) |
Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
Perforation Distance | 4anvil Blades（90-110mm）(Other size can be specified) |
Finished Product Diameter | Φ80~φ140mm |
Finished Product Core Diameter | φ38~φ55mm |
Production Speed | 100~250m/min |
Program Controller | PLC(Delta) |
Unwind Stands | 2 Stands（Need to be specified） |
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa （ Provide by user） |
Main Power | 7.5KW |
Dimension | 5800*1900*1920(L*W*H) |
Weight | About 5.5T (All machine 40mm wallboard type institutions) |
Jumbo Roll Layers | 1~3layers，14~30gsm |
Edge-Line Embossing(can be specified) | Steel to steel (Pneumatic Control) |
Embossment (can be specified) | Big diameter rollers,Steel to Rubber, Double Sets |
Voltage | 380V 50HZ(can be specified) |
Products Features
1) This machine is used to make kitchen paper rolls. The overall structure is wall-mounted, which makes the machine run at high speed and has no noise.
2) Automatic core delivery system, automatically push the log after rewinding, and then re-wind the new log.
3) Adopt international advanced PLC programmable control technology, man-machine interface operation on the touch screen, data set and parameter fault display.
4) 4 high-precision spiral knives with low noise, clear perforation and a wider range of gearboxes.
5) Double wall rear bracket, pneumatic lifting system, broadband drive flat belt; each large volume can be adjusted independently.
6) Simple and safe operation.

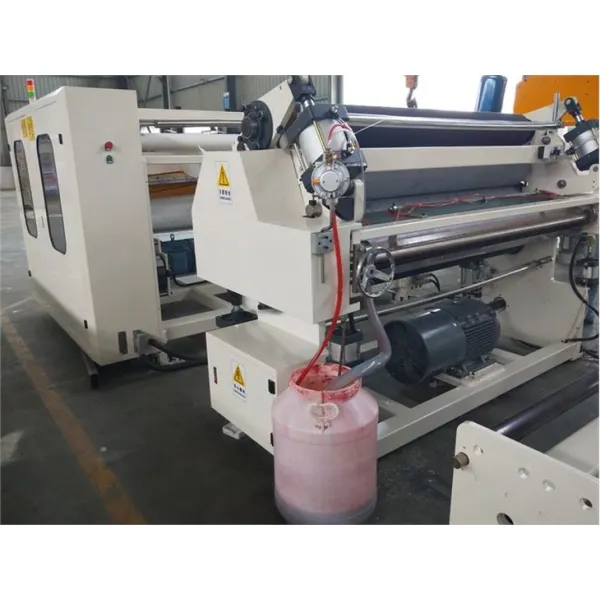

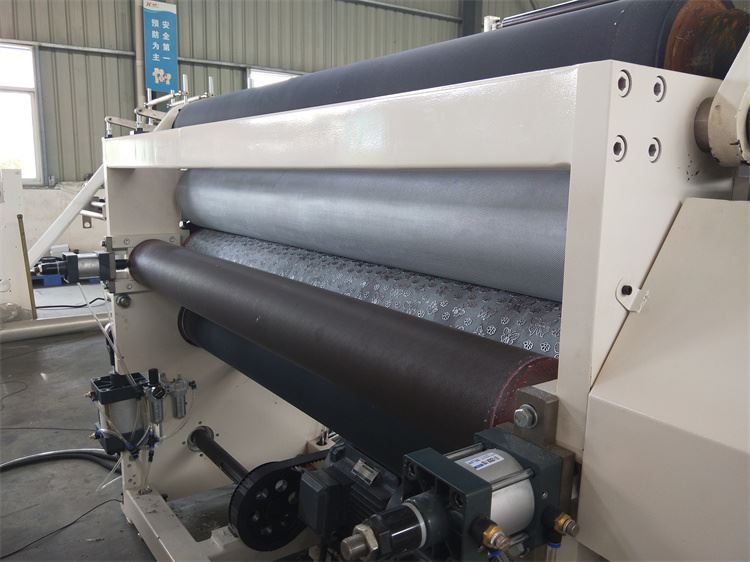

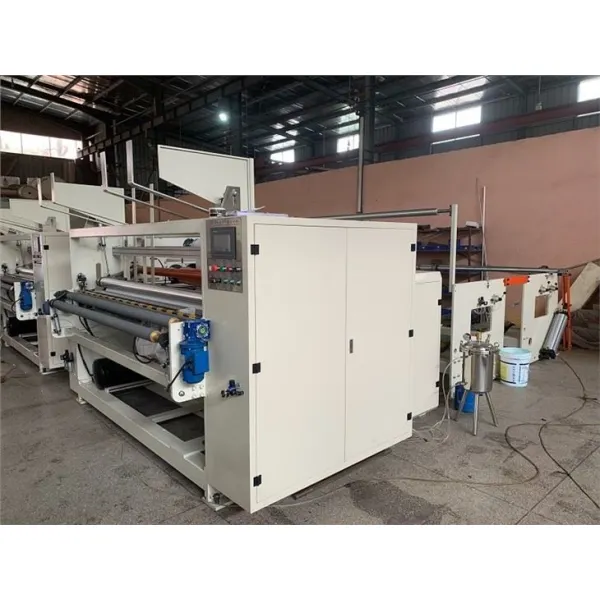

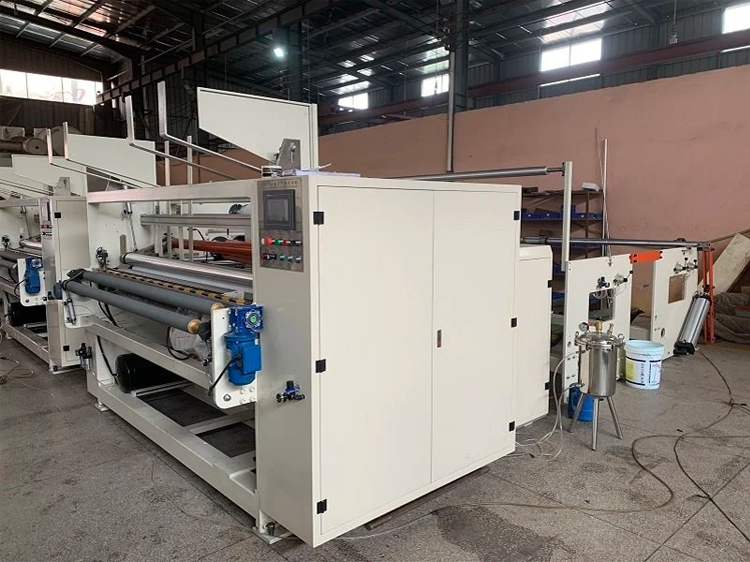

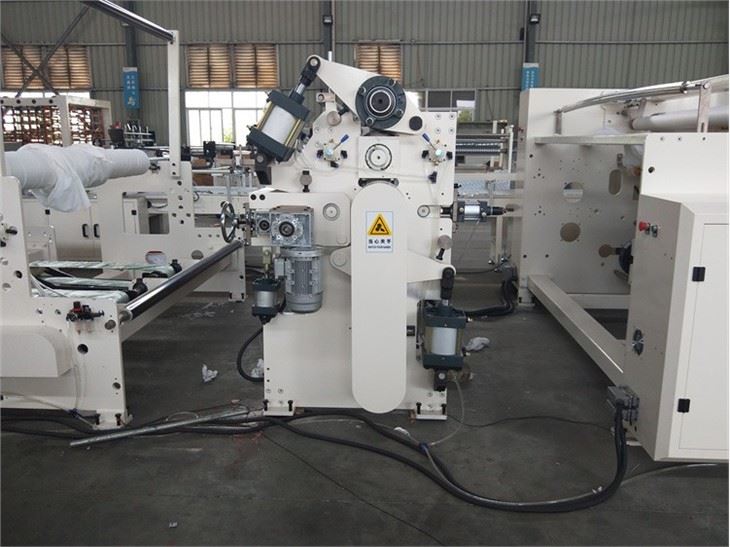

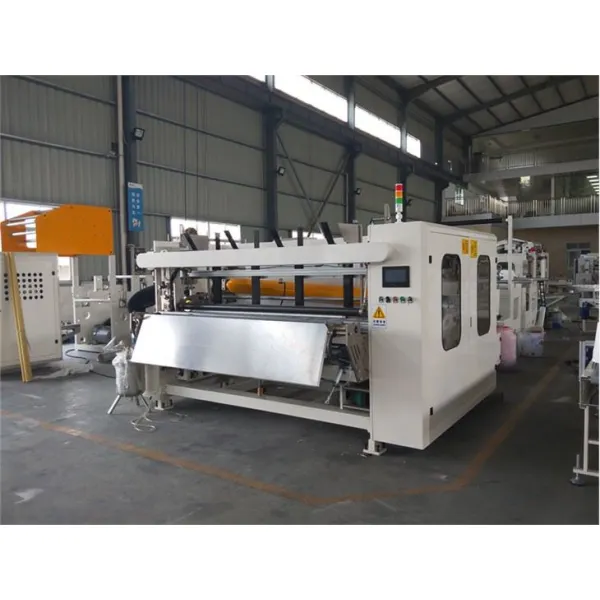

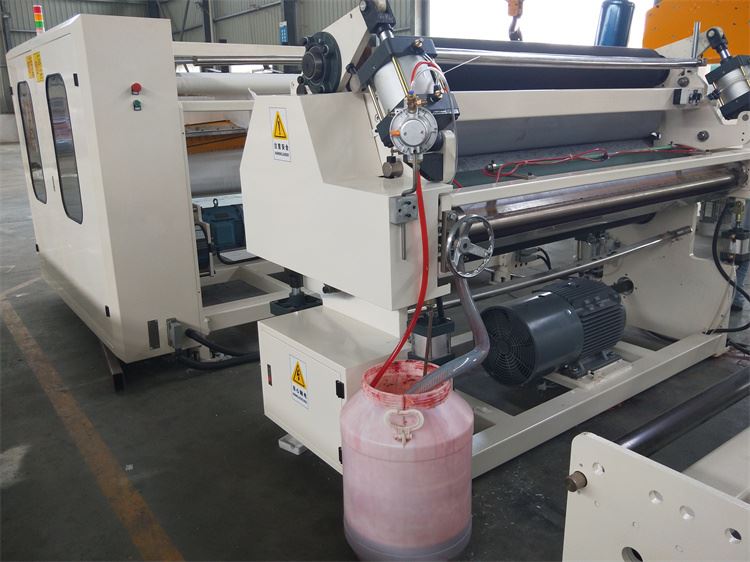

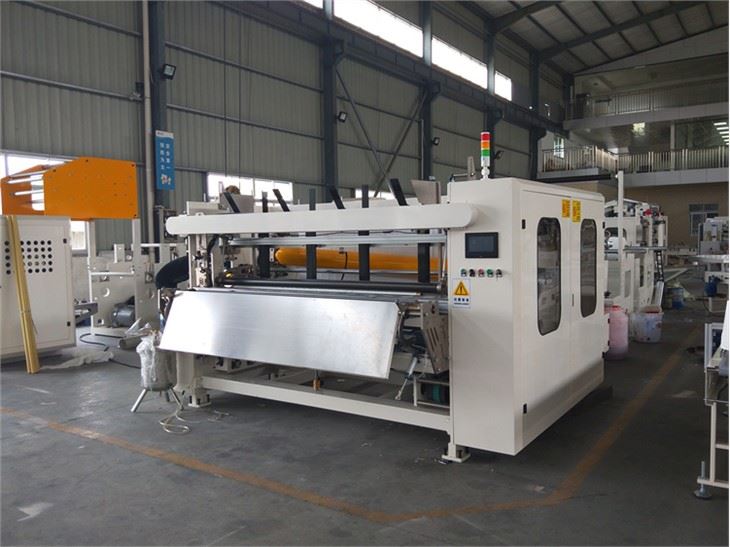

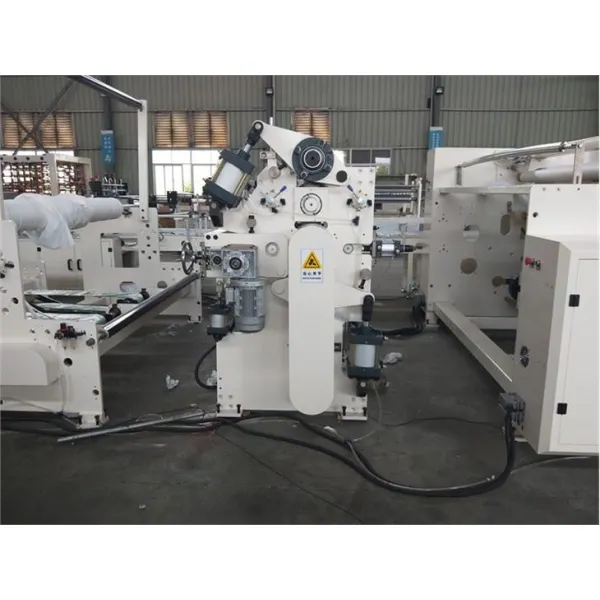

Products pictures
