Fully Automatic Band Saw Toilet Paper Cutting Machine

Products Description

This tissue paper cutting machine is the equipment for making toilet paper roll, which is the supporting for rewinding and perforated toilet paper machine. The main function is to cut the rewinded big long toilet paper roll into various kinds of standard small rolls.

The tissue paper cutting machine is composed with stander, saw blade drive, adjustment, tension, saw blade grinding, operation table and hand table. The tissue paper cutting machine is of compact structure, stable running and convenient operation.

Products Parameter

Products Features

1. When the paper roll is pushed into the cutting system, it will be delivered by converyer system automatically for cutting.

2. T he tissue paper cutting machine is equipped with advanced photoelectric detection system and large-diameter spiral cutting machine, it can automatically set the length and cut accurately.

3. The cutting system adopts the automatic sharpening system for perfect performance. The grinding system can accurately count according to the number of cutting times and grind the blade in time.

4. This tissue paper cutting machine adopts advanced servo drive and frequency conversion speed regulation. PLC control and touch screen operation. The PLC screener adjusts the grinding frequency, cutting speed and cutting length of the insert. This makes the push, cut and sharpen smooth.

5. Equipped with pneumatic brake function, which can extend the service life of the motor and make the brake perfect.

6. The inhalation device can absorb the waste generated by sharpening and discharge it out of the machine. Helps sharpen grinding and reduce the rate of defective products

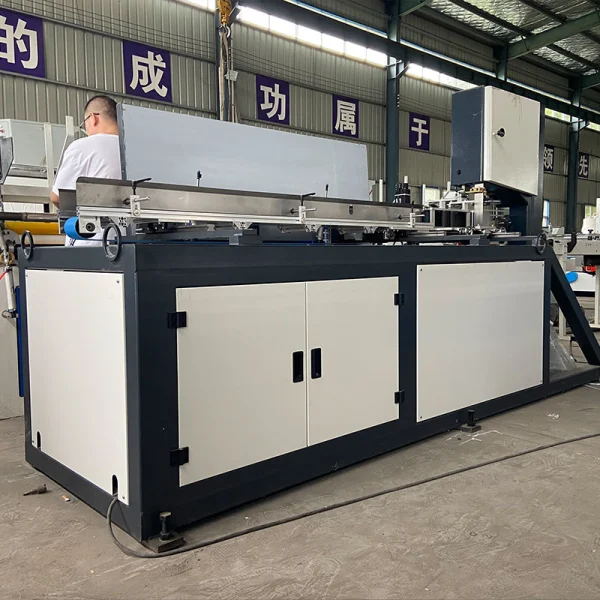

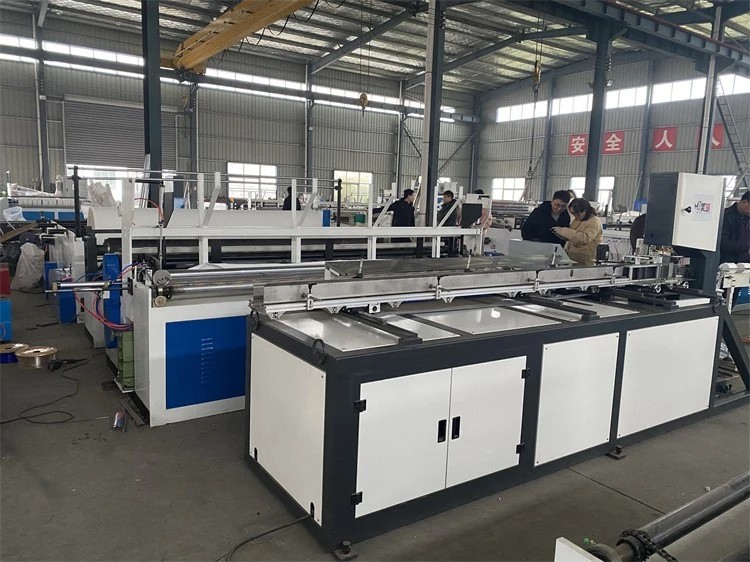

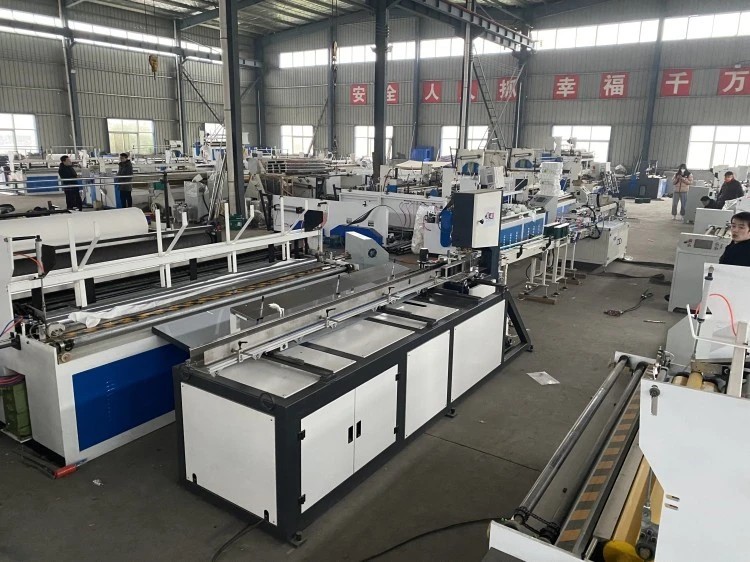

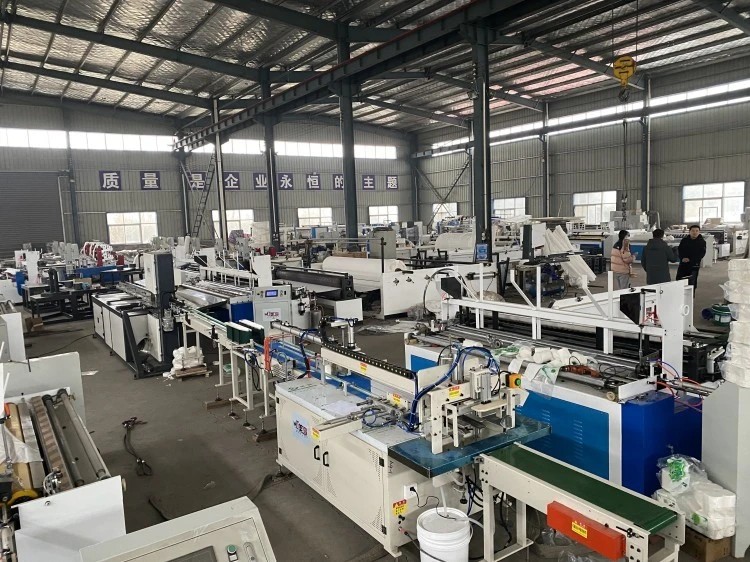

Products pictures
