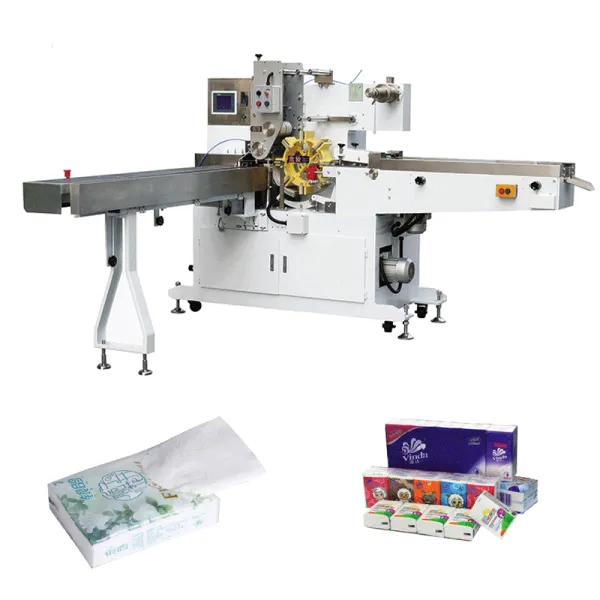

The Full Automatic Pocket Tissue Multi-bundle Packing Machine is designed for the automatic intermediate packaging of pocket tissues and other small tissue products. It combines product counting, grouping, feeding, wrapping or bagging, sealing, and discharge functions into one integrated packaging system.
The machine supports flexible multi-bundle packaging configurations, allowing several individual pocket tissue packs to be combined into one larger package according to different product and packaging requirements. It is suitable for tissue paper manufacturers and converters that need efficient and flexible secondary or intermediate packaging.
| Basic Characteristics | Specification |
|---|---|
| Product Feeding | Automatic feeding with connected pocket tissue production line |
| Design Production Speed | 35 packs/min |
| Maximum Stable Production Speed | 18–25 packs/min |
| Product Specification Changeover Time | 30 min |
| Packaging Film Replacement Time | 15 min |
| Packaging Specifications | Standard and mini 5-pack, 6-pack × 3–2 layers, etc. |
| Pattern Position Printing Tolerance | Longitudinal: ±2 mm; Transverse: ±2 mm |
| Overall Dimensions | 4400 × 2200 × 1500 mm (L × W × H) |
| Total Weight | ≥1200 kg |
| Packaging Material | CPP double-sided heat-sealable film |
| Packaging Film Thickness | 0.035–0.05 mm |
| Maximum Film Roll Diameter | 480 mm |
| Film Roll Core Diameter | 76 mm |
| Maximum Film Roll Width | 420 mm |
| Air Supply Pressure | 5–6 kg/cm² |
| Electrical Cabinet Power Supply | 380 V |
| Total Drive Power | 4 kW |
| Total Heating Power | 3.6 kW |
| Permissible Voltage Variation | ±10% |
| Control Cabinet Protection | PELV electrical system protection |
| Tissue Packaging Method | Parallel packaging |
Dual Packaging Modes
The machine supports two packaging modes to accommodate different packaging requirements:
Wrapping Mode: Individual pocket tissue packs are grouped and wrapped with packaging film to form a compact multi-pack.
Bagging Mode: Grouped tissue packs are automatically collected and packed into bags for convenient handling and transportation.
The two modes provide greater flexibility when switching between different product packaging requirements.
Flexible Multi-Bundle Packaging
The machine can handle different combinations of pocket tissue packs according to the required package configuration. The grouping and counting settings can be adjusted according to the number of individual packs required in each bundle.
This makes the machine suitable for different retail and wholesale packaging formats while reducing the need for manual grouping and packing.
Intelligent Counting and Correction
An automatic counting and correction system helps accurately count and arrange pocket tissue packs before the packaging process. The system can identify and correct product feeding deviations, helping maintain stable product grouping and reduce missing or incorrectly counted packs.
This feature is particularly useful for continuous batch production where consistent multi-pack quantities are required.
Variable Frequency Speed Control
The machine uses variable frequency speed regulation to adjust the operating speed according to different production requirements. Operators can set an appropriate working speed based on product characteristics, package configuration, and production capacity.
This provides greater flexibility when handling different orders and helps manufacturers balance production efficiency with packaging quality.
Compact and Practical Design
The Full Automatic Pocket Tissue Multi-bundle Packing Machine features a compact structure designed to reduce the required installation space. Its integrated configuration helps simplify the packaging workflow while making daily operation, cleaning, inspection, and maintenance more convenient.
The compact design makes the machine suitable for tissue production facilities where floor space is limited.
Efficient Intermediate Packaging
By integrating automatic counting, grouping, feeding, packaging, sealing, and discharge, the machine reduces manual handling during the intermediate packaging process.
A typical working process is:
Pocket Tissue Packs → Counting → Grouping → Feeding → Wrapping / Bagging → Sealing → Finished Multi-bundle Package
This integrated workflow helps improve packaging consistency and supports continuous production.
Applications
The machine is mainly suitable for packaging:
Pocket tissues
Small tissue packs
Facial tissue packs
Portable tissue products
Multi-pack tissue products
Other small paper products suitable for grouped packaging
It can be used for different packaging requirements in tissue manufacturing, paper product converting, retail packaging, and distribution.
Key Features
Fully automatic intermediate packaging
Supports wrapping and bagging modes
Flexible multi-bundle configurations
Automatic product counting and grouping
Intelligent counting correction
Variable frequency speed regulation
Compact machine structure
Small installation footprint
Convenient operation and maintenance
Suitable for different production capacities
Designed for batch production and flexible order processing
Production Flexibility
The machine is designed to meet both continuous batch production and smaller customized orders. By adjusting the product grouping, packaging mode, and operating speed, manufacturers can switch between different packaging requirements without changing the overall packaging process.
The Full Automatic Pocket Tissue Multi-bundle Packing Machine provides an integrated solution for efficiently converting individually packed pocket tissues into organized multi-bundle packages, helping tissue product manufacturers improve packaging efficiency and reduce manual intervention.
