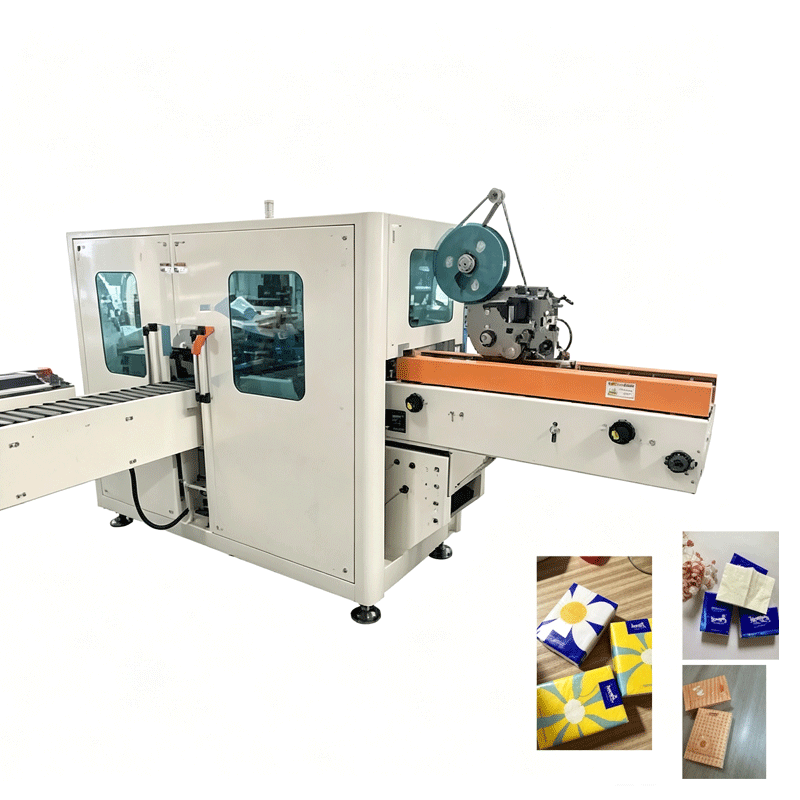

The Pocket Tissue Single-Pack Packing Machine is a fully automatic packaging solution designed for individual packaging of pocket tissue products. It integrates automatic feeding, wrapping, sealing, and product discharge into one continuous process, helping reduce manual operation and improve packaging efficiency.
As an Automatic Pocket Tissue Packing Machine, it supports unmanned operation throughout the packaging process and can be adapted to different pocket tissue specifications. The machine is designed to provide neat and attractive packaging with firm sealing, making it suitable for continuous and high-volume tissue production.
| Basic Characteristics | Specification |
|---|---|
| Product Feeding | Automatic Feeding |
| Design Production Speed | 15–220 packs/min |
| Maximum Stable Production Speed | 180–200 packs/min |
| Product Specification Changeover Time | 30 min |
| Packaging Film Replacement Time | 1 min |
| Packaging Specifications | Length: 72–105 mm; Width: 50–70 mm; Height: 14–40 mm |
| Pattern Position Printing Tolerance | Longitudinal: ±2 mm; Transverse: ±2 mm |
| Overall Dimensions | 2960 × 750 × 1690 mm (L × W × H) |
| Total Weight | 1400 kg |
| Packaging Material | CPP Double-Sided Heat-Sealable Film |
| Packaging Film Thickness | 0.035–0.05 mm |
| Maximum Film Roll Diameter | 420 mm |
| Film Roll Core Diameter | 76 mm |
| Maximum Film Roll Width | 170 mm |
| Air Supply Pressure | 6–8 kg/cm² |
| Electrical Cabinet Power Supply | AC 380 V, 50 Hz |
| Permissible Voltage Variation | ±10% |
| Control Cabinet Protection | PELV Electrical System Protection |
| Tissue Packaging Method | 3D Rotary Turntable Packaging |
Key Features
Fully Automatic Operation
Automatic feeding, wrapping, sealing, and finished product discharge reduce manual intervention and support continuous production.Single-Pack Packaging
Designed specifically for individual pocket tissue packs, providing consistent packaging quality for retail and distribution applications.Flexible Product Compatibility
Accurately adapts to different pocket tissue sizes and packaging specifications, helping manufacturers handle multiple product formats.Neat and Secure Packaging
The packaging film is formed evenly around the tissue pack, producing a flat appearance and reliable heat-sealed edges.High Packaging Efficiency
Automatic operation helps reduce repetitive manual work and improve overall packaging productivity.Stable and Energy-Efficient Operation
Optimized drive and heating systems support stable operation while helping control energy consumption during continuous production.Hygienic and Easy to Clean
The machine structure is designed for convenient cleaning and routine maintenance, making it suitable for tissue product packaging environments.Suitable for Different Production Scales
Suitable for small and medium-sized tissue factories as well as larger manufacturers looking to expand packaging capacity and support multi-channel supply.
Packaging Process
Pocket Tissue Feeding → Automatic Film Wrapping → Heat Sealing → Product Discharge → Finished Single-Pack Pocket Tissue
Applications
The Pocket Tissue Packing Machine is suitable for packaging various pocket tissue products for supermarkets, convenience stores, wholesalers, distributors, retail channels, and other consumer markets. Its automatic packaging process helps manufacturers maintain consistent package quality while supporting continuous production.
For tissue manufacturers seeking a reliable Pocket Tissue Single-Pack Packing Machine, this system provides an efficient solution for automatic individual packaging and scalable production.
