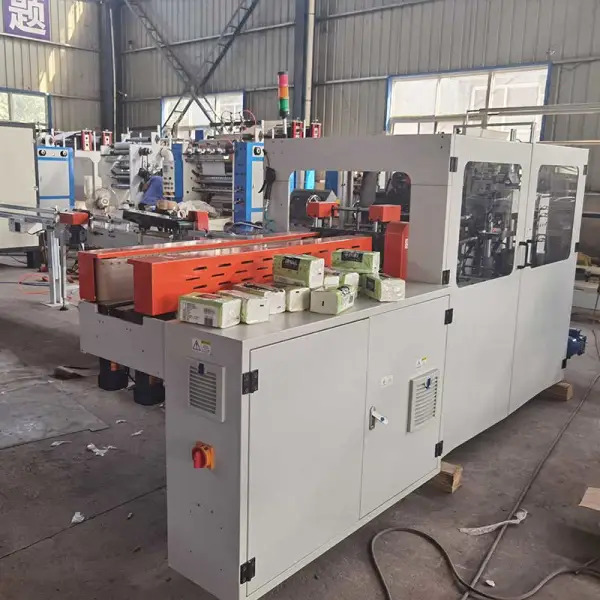

1. The whole machine adopts PLC and servo motor as control and driving units, realizing fully automated operation of product conveying, flipping, counting, bag taking, bag opening, bag insertion, and sealing;
2. Mold forming: The sealing adopts a mold negative pressure forming design to ensure that the packaging effect is beautiful;
3. Human computer interface: dual touch screen settings and operation, easy and convenient to operate;
4. Fault tracking alarm: It can quickly identify the cause and location of the fault and automatically display it on the touch screen for easy equipment maintenance;
5. Monitoring system: with or without packaging bags, product monitoring to prevent operation without packaging bags or products; When the shape of the packaging bag is abnormal, it will be automatically discharged; Automatically stop running when abnormal bag opening occurs; Automatically discharge the packaging bag when it fails to open due to adhesion of the packaging bag;
6. The packaging speed can be freely adjusted;
7. Temperature control system: adopting constant temperature heating and AC control mode, it has strong adaptability to corona discharge of packaging bags, effectively avoiding the drawbacks of false sealing;
8. Adopting a single channel feeding system, it can be connected to a single paper drawing machine
Packaging size (mm)： | L (180-400) x W (120-400) x H (90) |
Packaging speed (packs/minute)： | 16-20 packs/minute |
Total power (KW)： | 12KW |
Power supply： | 380V 50Hz |
Whole machine weight (Kg)： | 3000 Kg |
Pressure requirement： | 0.5-0.6MPA |
Maximum width of capsule： | 330mm |
Power supply for electrical cabinet： | 380 V 50HZ |
Packaging materials: | OPP, CPP, PE and other pre made bags with heat sealing function |
